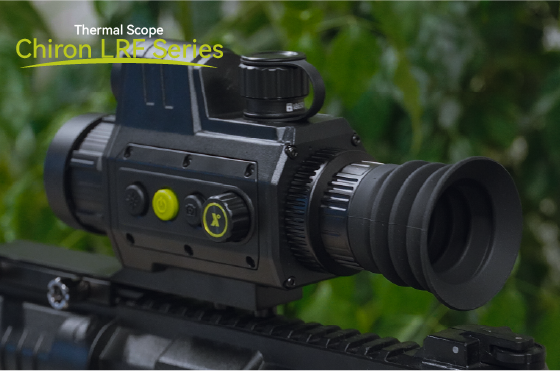

Chiron LRF Series

Lock-On, Readiness, Fire

编组 26备份 2
编组 26备份

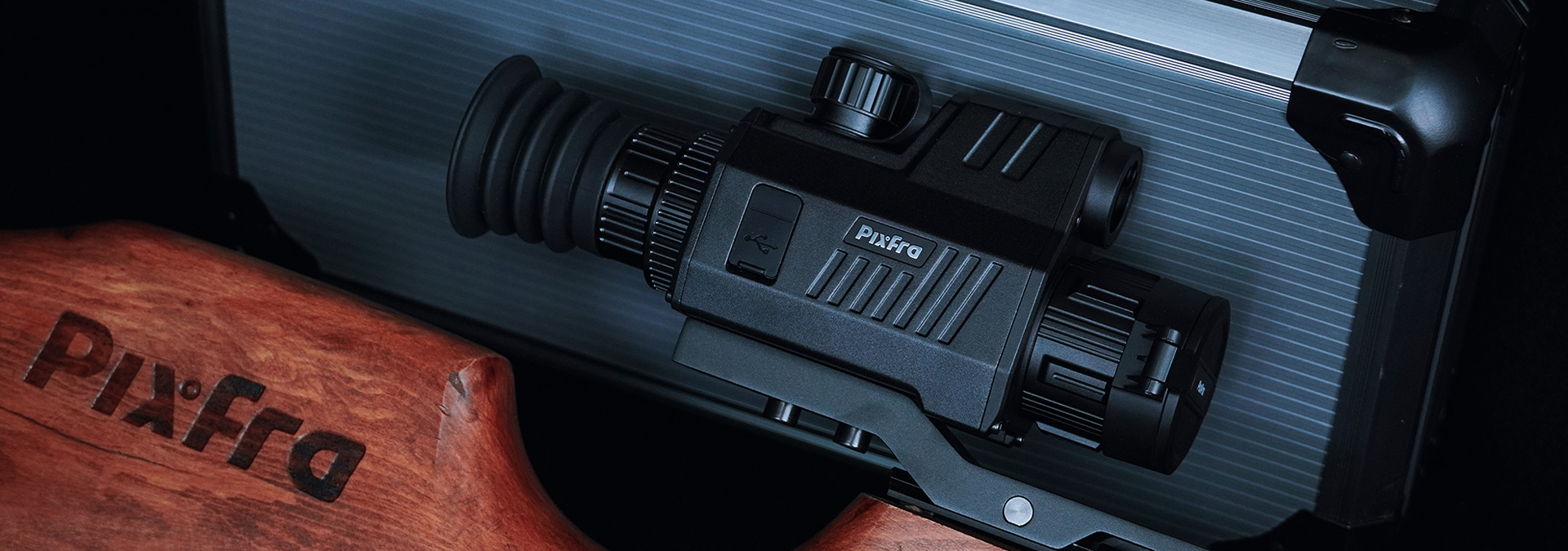

Chiron LRF

High Precision LRF

Equipped with a 1000m laser range finder for accurate distance measurement, Chiron LRF is engineered to deliver the critical information needed for a precision shot, factoring in environmental variables to calculate the perfect timing for your shot with enhanced precision.

Improved Image Quality and Display

With our 20mk detector, temperature differences can be accurately identified, and coupled with a high-resolution OLED display screen, eye-catching detailed images can be rendered, resulting in a clear and realistic viewing experience.

Durable and Robust Construction

Durable metal construction withstanding 1000g/ms impacts and 6000J energy, provide users with ultra durable and reliable equipment to achieve precise and high-pressure operations while maintaining excellent image quality.

Advanced Ballistics Calculator Integration

Features an integrated ballistic calculator that swiftly computes various factors for accurate targeting at varying distances, ensuring precision and the ability to acquire every target without fail.

Extended Battery Life

Enjoy up to 15 hours of thermal imaging with our double 18650 battery, complemented by support for a variety of charging methods, keeping your scope is always ready for action.

Support Knob Operation

Our thermal scope boasts an intuitive knob operation that allows for rapid and precise adjustments in the field, ensuring you can easily adapt to changing conditions with full user control.

Capture Every Shot

Utilize RAR Technology for automatic recording, ensuring no detail is missed for an enhanced shooting experience.

More Products

Thermal Front Attachment Taurus Series

Capture the goal at first sight

Thermal Scope Pegasus Series

Shoot in a Traditional Way

左右滑动备份 2
左右滑动备份

Product Parameters

Product Model
PFI-C425 LRF
PFI-C435 LRF
PFI-C450 LRF
PFI-C635 LRF
PFI-C650 LRF
Detector Type
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Effective Pixels
384 (H) × 288 (V)
384 (H) × 288 (V)
384 (H) × 288 (V)
640 (H) × 512 (V)
640 (H) × 512 (V)
Pixel Pitch
12 μm
12 μm
12 μm
12 μm
12 μm
Spectral Range
8 μm~14 μm
8 μm~14 μm
8 μm~14 μm
8 μm~14 μm
8 μm~14 μm
Sensitivity (NETD)
≤20 mK@f/1.0
≤20 mK@f/1.0
≤20 mK@f/1.0
≤20 mK@f/1.0
≤20 mK@f/1.0
Frame Rate
50 Hz
50 Hz
50 Hz
50 Hz
50 Hz
Focal Length
25 mm
35 mm
50 mm
35 mm
50 mm
Field of View@100 m
18.4 m × 13.8 m
13.2 m × 9.9 m
9.2 m × 6.9 m
21.9 m × 17.6 m
15.4 m × 12.3 m
Thermal Focus Control
Manual
Manual
Manual
Manual
Manual
Close Focus Distance
2 m (6.56 ft)
2 m (6.56 ft)
5 m (16.40 ft)
3 m (9.84 ft)
5 m (16.40 ft)
Aperture
F1.0
F1.0
F1.0
F1.0
F1.0
Detection Range
1,300 m (4,265.09 ft)
1,800 m (5,905.51 ft)
2,600 m (8,530.18 ft)
1,800 m (5,905.51 ft)
2,600 m (8,530.18 ft)
Digital Zoom
1 ×; 2 ×; 4 ×; 8 ×
1 ×; 2 ×; 4 ×; 8 ×
1 ×; 2 ×; 4 ×; 8 ×
1 ×; 2 ×; 4 ×; 8 ×
1 ×; 2 ×; 4 ×; 8 ×
Magnification
2.11 ×
2.95 ×
4.21 ×
1.80 ×
2.57 ×
Color Palettes
6 (white hot/black hot /iron red/ alarm/amber/emerald)
6 (white hot/black hot /iron red/ alarm/amber/emerald)
6 (white hot/black hot /iron red/ alarm/amber/emerald)
6 (white hot/black hot /iron red/ alarm/amber/emerald)
6 (white hot/black hot /iron red/ alarm/amber/emerald)
Screen Dimensions
0.41 inch, OLED
0.41 inch, OLED
0.41 inch, OLED
0.41 inch, OLED
0.41 inch, OLED
Storage
Built-in EMMC (32 GB)
Built-in EMMC (32 GB)
Built-in EMMC (32 GB)
Built-in EMMC (32 GB)
Built-in EMMC (32 GB)
Uniformity Correction
Auto, manual
Auto, manual
Auto, manual
Auto, manual
Auto, manual
PIP
Yes
Yes
Yes
Yes
Yes
Audio Recording
Yes
Yes
Yes
Yes
Yes
Recoil-activation Recording
Yes
Yes
Yes
Yes
Yes
Max. Recoil
1000g/ 1ms
1000g/ 1ms
1000g/ 1ms
1000g/ 1ms
1000g/ 1ms
Hot Spot Trace
Yes
Yes
Yes
Yes
Yes
Wi-Fi
Yes
Yes
Yes
Yes
Yes
Power Supply
5 VDC/1 A, Type-C
5 VDC/1 A, Type-C
5 VDC/1 A, Type-C
5 VDC/1 A, Type-C
5 VDC/1 A, Type-C
Battery Type
1 replaceable 18650 battery
1 replaceable 18650 battery
1 replaceable 18650 battery
1 replaceable 18650 battery
1 replaceable 18650 battery
Battery Capacity
3,200 mAh
3,200 mAh
3,200 mAh
3,200 mAh
3,200 mAh
Overvoltage Protection
Yes
Yes
Yes
Yes
Yes
Battery Operating Life
≥7.5 h
≥7.5 h
≥7.5 h
≥6.5h
≥6.5h
Operating Temperature
-30 °C to +55 °C (-22 °F to +131 °F)
-30 °C to +55 °C (-22 °F to +131 °F)
-30 °C to +55 °C (-22 °F to +131 °F)
-30 °C to +55 °C (-22 °F to +131 °F)
-30 °C to +55 °C (-22 °F to +131 °F)
Storage Temperature
-30 °C to +65 °C (-22 °F to +149 °F)
-30 °C to +65 °C (-22 °F to +149 °F)
-30 °C to +65 °C (-22 °F to +149 °F)
-30 °C to +65 °C (-22 °F to +149 °F)
-30 °C to +65 °C (-22 °F to +149 °F)
Protection
IP67
IP67
IP67
IP67
IP67
Product Dimensions
213.4 mm × 65.7 mm × 91.5 mm (8.4" × 2.59" × 3.6") (L × W × H)
213.4 mm × 65.7 mm × 91.5 mm (8.4" × 2.59" × 3.6") (L × W × H)
223.4 mm × 65.7 mm × 91.5 mm (8.8" × 2.59" × 3.6") (L × W × H)
213.4 mm × 65.7 mm × 91.5 mm (8.4" × 2.59" × 3.6") (L × W × H)
223.4 mm × 65.7 mm × 91.5 mm (8.8" × 2.59" × 3.6") (L × W × H)
Packaging Dimensions
310 mm × 180 mm × 138 mm (12.2" × 7.09" × 5.43") (L × W × H)
310 mm × 180 mm × 138 mm (12.2" × 7.09" × 5.43") (L × W × H)
310 mm × 180 mm × 138 mm (12.2" × 7.09" × 5.43") (L × W × H)
310 mm × 180 mm × 138 mm (12.2" × 7.09" × 5.43") (L × W × H)
310 mm × 180 mm × 138 mm (12.2" × 7.09" × 5.43") (L × W × H)
Net Weight
<593 g (1.31 lb)
<608 g (1.34 lb)
<632 g (1.39 lb)
<608 g (1.34 lb)
<632 g (1.39 lb)
LRF Range
1,000 m (3,280.84 ft)
1,000 m (3,280.84 ft)
1,000 m (3,280.84 ft)
1,000 m (3,280.84 ft)
1,000 m (3,280.84 ft)
LRF Accuracy
±1 m (3.28 ft)
±1 m (3.28 ft)
±1 m (3.28 ft)
±1 m (3.28 ft)
±1 m (3.28 ft)
