Thermal Scope Pegasus Series

Shoot in a Traditional Way

编组 26备份 2
编组 26备份

Pegasus

  • Introduction
  • Product Parameters
  • Videos & Pictures
  • Download
Product Comparison
Buy Now

Effortless Operation

Fresh UI Design

Familiar yet Advanced User Experience

Elegance in Lightweight Alloy

Enhanced Visual Comfort

Comfortable Design Enhancements

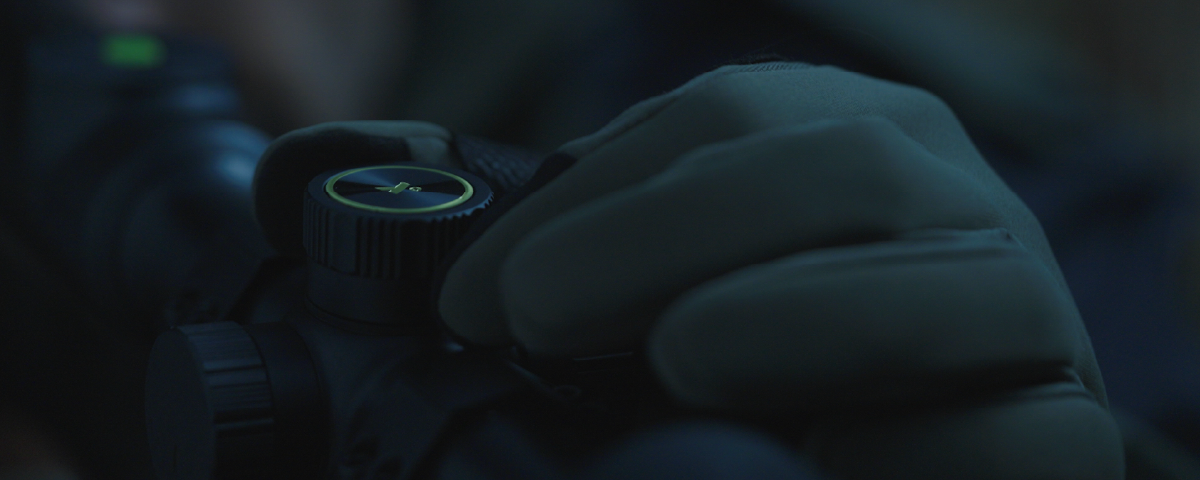

Effortless Operation

Clear knobs and optimally designed buttons. One tap for your needs, no accidental touches.

Familiar yet Advanced User Experience

With a 30mm tube diameter and a lower installation position, it seamlessly aligns with your existing habits.

Enhanced Visual Comfort

FHD OLED display combined with high-magnification eyepiece and PIPS technology for vivid, clear, 20ms low latency target imaging.

Extended Battery Life

Empowered by a 6400mAh rechargeable battery, enabling continuous usage for up to 15 hours, catering to all-day outdoor needs.

Capture Everything in All Dimensions

Recoil-activation video and audio recording with built-in 64GB storage.

Exceptional Detection Capability

Equipped with a 12μm detector and a maximum 50mm F1.0 lens, capable of detecting targets up to 2600 meters away.

Fresh UI Design

A completely revamped UI for a more user-friendly, aesthetically pleasing, and functionally concise layout.

Picture&Video

视频 Play Video

More Products

Taurus Series

Capture the goal at first sight

编组 6 Discover More

Chiron LRF Series

Lock-On, Readiness, Fire

编组 6 Discover More
左右滑动备份 2
左右滑动备份

Product Parameters

Product Model
PFI-P435
PFI-P450
PFI-P635
PFI-P650
Detector Type
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Effective Pixels
384 (H) × 288 (V)
384 (H) × 288 (V)
640 (H) × 512 (V)
640 (H) × 512 (V)
Pixel Pitch
12 μm
12 μm
12 μm
12 μm
Spectral Range
8 μm–14 μm
8 μm–14 μm
8 μm–14 μm
8 μm–14 μm
Sensitivity (NETD)
≤30 mK@f/1.0
≤30 mK@f/1.0
≤30 mK@f/1.0
≤30 mK@f/1.0
Frame Rate
50 Hz
50 Hz
50 Hz
50 Hz
Focal Length
35 mm
50 mm
35 mm
50 mm
Field of View@100m
13.2 m × 9.9 m
9.2 m × 6.9 m
21.9 m × 17.6 m
15.4 m × 12.3m
Focus Control
Manual
Manual
Manual
Manual
Close Focus Distance
3 m (9.8 ft)
5 m(16.4 ft)
3 m (9.8 ft)
5 m(16.4 ft)
Aperture
F1.0
F1.0
F1.0
F1.0
Detection Distance
1800 m
2600 m
1800 m
2600 m
Magnification
3.19×
4.55×
1.95×
2.78×
Size
0.41 inch, OLED
0.41 inch, OLED
0.41 inch, OLED
0.41 inch, OLED
Resolution
1440 (H) × 1080 (V)
1440 (H) × 1080 (V)
1440 (H) × 1080 (V)
1440 (H) × 1080 (V)
Diopter
-3 D to +5 D
-3 D to +5 D
-3 D to +5 D
-3 D to +5 D
Eye Relief
50 mm (1.97")
50 mm (1.97")
50 mm (1.97")
50 mm (1.97")
Color Palettes
6 (white hot/black hot/iron red/alarm/emerald/amber)
6 (white hot/black hot/iron red/alarm/emerald/amber)
6 (white hot/black hot/iron red/alarm/emerald/amber)
6 (white hot/black hot/iron red/alarm/emerald/amber)
Digital Zoom
1×; 2×; 4×; 8×
1×; 2×; 4×; 8×
1×; 2×; 4×; 8×
1×; 2×; 4×; 8×
Reticle
Multiple Patterns & Color Options
Multiple Patterns & Color Options
Multiple Patterns & Color Options
Multiple Patterns & Color Options
Zeroing
Auto; manual
Auto; manual
Auto; manual
Auto; manual
Video Recorder
Yes
Yes
Yes
Yes
Snapshot
Yes
Yes
Yes
Yes
Wi-Fi Hotspot
Yes
Yes
Yes
Yes
Hot Spot Track
Yes
Yes
Yes
Yes
Video DistanceMeasurement
Yes
Yes
Yes
Yes
FFC Calibration
Auto; manual; immediately
Auto; manual; immediately
Auto; manual; immediately
Auto; manual; immediately
Standby Mode
Yes
Yes
Yes
Yes
PIP (Picture in Picture)
Yes
Yes
Yes
Yes
DPC (Defective PixelCorrection)
Yes
Yes
Yes
Yes
RAR (Recoil ActivatedRecorder)
Yes
Yes
Yes
Yes
MIC
Yes
Yes
Yes
Yes
Storage
Built-in 64 GB
Built-in 64 GB
Built-in 64 GB
Built-in 64 GB
Power Supply
5 VDC/2 A, Type-C
5 VDC/2 A, Type-C
5 VDC/2 A, Type-C
5 VDC/2 A, Type-C
Battery Type
Two rechargeable Lithium batteries (internal) and one replaceable CR123A (external)
Two rechargeable Lithium batteries (internal) and one replaceable CR123A (external)
Two rechargeable Lithium batteries (internal) and one replaceable CR123A (external)
Two rechargeable Lithium batteries (internal) and one replaceable CR123A (external)
Battery Capacity
6,400 mAh (internal)
6,400 mAh (internal)
6,400 mAh (internal)
6,400 mAh (internal)
Overvoltage Protection
Yes
Yes
Yes
Yes
Standby Time
≥15 h
≥15 h
≥15 h
≥15 h
Operating Temperature
-30 °C to +50 °C (-22 °F to +122 °F)
-30 °C to +50 °C (-22 °F to +122 °F)
-30 °C to +50 °C (-22 °F to +122 °F)
-30 °C to +50 °C (-22 °F to +122 °F)
Operating Humidity
≤95%
≤95%
≤95%
≤95%
Storage Temperature
-30 °C to +65 °C (-22 °F to +149 °F)
-30 °C to +65 °C (-22 °F to +149 °F)
-30 °C to +65 °C (-22 °F to +149 °F)
-30 °C to +65 °C (-22 °F to +149 °F)
Protection
IP67
IP67
IP67
IP67
Roduct Dimensions
408 mm × 78 mm × 62mm (13.38" × 2.56" × 2.03") (L × W × H)
420.5 mm × 77.5 mm × 74 mm (16.55" × 3.05" × 2.91") (L × W × H)
408 mm × 78 mm × 62 mm (13.38" × 2.56" × 2.03") (L × W × H)
420.5 mm × 77.5 mm × 74 mm (16.55" × 3.05" × 2.91") (L × W × H)
Packaging Dimensions
495 mm × 154 mm × 132 mm (19.45" × 6.06" × 5.19") (L × W × H)
495 mm × 154 mm × 132 mm (19.45" × 6.06" × 5.19") (L × W × H)
495 mm × 154 mm × 132 mm (19.45" × 6.06" × 5.19") (L × W × H)
495 mm × 154 mm × 132 mm (19.45" × 6.06" × 5.19") (L × W × H)
Net Weight
≤855g (1.88 lb)
≤957 g (2.10 lb)
≤855g (1.88 lb)
≤957 g (2.10 lb)
Gross Weight
≤2.8kg (6.17 lb)
≤2.8kg (6.17 lb)
≤2.8kg (6.17 lb)
≤2.8kg (6.17 lb)

Introduction Video
