Pro-grade Image Sensor

Six Color Palettes

Vivid Scene is in the Screen

Long Battery Life

Extend Your Sight Edge

Strong Protection Ability

Pro-grade Image Sensor

All models adopt 12μm detector, up to 640×512 resolution, detector sensitivity < 30mk, even in heavy rain, fog or cold harsh environment, can perfectly present details, clearly observe the target feature details.

Vivid Scene is in the Screen

The Ranger series monocular is equipped with high-resolution OLED, which brings the picture quality experience such as contrast and color to a new level. Compared with 1024×768 resolution, the 1440×1080 resolution has doubled the number of pixels, making it clearer and more detailed.

1440×1080

resolution

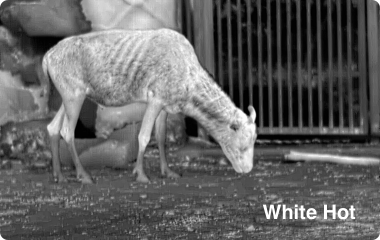

Six Color Palettes

Support white hot, black hot, alarm, iron red, jade, amber color mode, to meet your observation needs in different scenarios.

Extend Your Sight Edge

Ranger has a maximum 50mm lens, which can realize the detection distance of 2600m, helping you break through the visual boundary of human eyes at night.

Strong Protection Ability

Ranger supports IP67 protection and can be used after soaking in water for half an hour. The minimum operating temperature is -30℃, which can follow you to harsh environments.

Long Battery Life​

All models adopt 12μm detector, up to 640×512 resolution, detector sensitivity < 30mk, even in heavy rain, fog or cold harsh environment, can perfectly present details, clearly observe the target feature details.

Picture&Video

视频 Play Video

More Products

Thermal Monocular Mile 2 Series

New Miles to Go

编组 6 Discover More

Thermal Monocular Arc LRF Series

Performance and Precision in Your Hand

编组 6 Discover More
左右滑动备份 2
左右滑动备份

Product Parameters

Product Model
PFI-R425
PFI-R435
PFI-R625
PFI-R635
PFI-R650
Detector Type
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Vanadium oxide uncooled focal plane detector
Effective Pixels
384 (H) × 288 (V)
384 (H) × 288 (V)
640 (H) × 512 (V)
640 (H) × 512 (V)
640 (H) × 512 (V)
Pixel Pitch
12 μm
12 μm
12 μm
12 μm
12 μm
Spectral Range
8 μm～14 μm
8 μm～14 μm
8 μm～14 μm
8 μm～14 μm
8 μm～14 μm
Sensitivity (NETD)
≤30 mK@f/1.0
≤30 mK@f/1.0
≤30 mK@f/1.0
≤30 mK@f/1.0
≤30 mK@f/1.0
Frame Rate
50 Hz
50 Hz
50 Hz
50 Hz
50 Hz
Focal Length
25 mm
35 mm
25 mm
35 mm
50 mm
Field of View@100m
18.4 m × 13.8 m
13.2 m × 9.9 m
30.7 m × 24.6 m
21.9 m × 17.6m
15.4 m × 12,3 m
Thermal Focus Control
Manual
Manual
Manual
Manual
Manual
Detection Range
1,300 m
1,800 m
1,300 m
1,800 m
2,600 m
Magnification
2.34 ×
3.27 ×
1.46 ×
2.05 ×
2.92 ×
Color Palettes
6 (white hot/black hot /iron red/ alarm/amber/emerald)
6 (white hot/black hot /iron red/ alarm/amber/emerald)
6 (white hot/black hot /iron red/ alarm/amber/emerald)
6 (white hot/black hot /iron red/ alarm/amber/emerald)
6 (white hot/black hot /iron red/ alarm/amber/emerald)
Close Focus Distance
0.5 m (1.64 ft)
2 m (6.56 ft)
0.5 m (1.64 ft)
2 m (6.56 ft）
1.5 m (4.92 ft)
Aperture
F1.0
F1.0
F1.0
F1.0
F1.0
Digital Zoom
1 ×; 2 ×; 4 ×; 8 ×
1 ×; 2 ×; 4 ×; 8 ×
1 ×; 2 ×; 4 ×; 8 ×
1 ×; 2 ×; 4 ×; 8 ×
1 ×; 2 ×; 4 ×; 8 ×
Screen Dimensions
0.41 inch, OLED
0.41 inch, OLED
0.41 inch, OLED
0.41 inch, OLED
0.41 inch, OLED
Screen Resolution
1440 (H) × 1080 (V)
1440 (H) × 1080 (V)
1440 (H) × 1080 (V)
1440 (H) × 1080 (V)
1440 (H) × 1080 (V)
Diopter
4D to +5D
4D to +5D
4D to +5D
4D to +5D
4D to +5D
Eye Relief
25 mm
25 mm
25 mm
25 mm
25 mm
Uniformity Correction
Auto; manual
Auto; manual
Auto; manual
Auto; manual
Auto; manual
Storage
Built-in EMMC (32 GB)
Built-in EMMC (32 GB)
Built-in EMMC (32 GB)
Built-in EMMC (32 GB)
Built-in EMMC (32 GB)
Cold/Hot Spot Trace
Yes
Yes
Yes
Yes
Yes
Wi-Fi
Yes
Yes
Yes
Yes
Yes
Analog Output
Yes, Type-C
Yes, Type-C
Yes, Type-C
Yes, Type-C
Yes, Type-C
Power Supply
5 VDC/2 A, Type-C
5 VDC/2 A, Type-C
5 VDC/2 A, Type-C
5 VDC/2 A, Type-C
5 VDC/2 A, Type-C
Battery Type
1 rechargeable Lithium batteries
1 rechargeable Lithium batteries
1 rechargeable Lithium batteries
1 rechargeable Lithium batteries
1 rechargeable Lithium batteries
Battery Capacity
3,200 mAh
3,200 mAh
3,200 mAh
3,200 mAh
3,200 mAh
Battery Operating Life
≥7.5h
≥7.5h
≥6.5h
≥6.5h
≥6.5h
Protection
IP67
IP67
IP67
IP67
IP67
Product Dimensions
190.5 mm × 64.7 mm × 69.6 mm (7.5" × 2.55" × 2.74") (L × W × H)
199.8 mm × 64.7 mm × 69.6 mm (7.87" × 2.55" × 2.74") (L × W × H)
190.5 mm × 64.7 mm × 69.6 mm (7.5" × 2.55" × 2.74") (L × W × H)
199.8 mm × 64.7 mm × 69.6 mm (7.87" × 2.55" × 2.74") (L × W × H)
217 mm × 64.7 mm × 69.6 mm (8.54" × 2.55" × 2.74") (L × W × H)
Packaging Dimensions
299 mm × 152 mm × 114 mm (11.77" × 5.98" × 4.49") (L × W × H)
299 mm × 152 mm × 114 mm (11.77" × 5.98" × 4.49") (L × W × H)
299 mm × 152 mm × 114 mm (11.77" × 5.98" × 4.49") (L × W × H)
299 mm × 152 mm × 114 mm (11.77" × 5.98" × 4.49") (L × W × H)
265 mm × 152 mm × 114 mm (10.43" × 5.98" × 4.49") (L × W × H)
Net Weight
≤400 g (0.88 lb)
≤400 g (0.88 lb)
≤400 g (0.88 lb)
≤400 g (0.88 lb)
≤495 g (1.09 lb)
